FAQ

All whitelisted SVs are listed in the public global synchronizer configurations repository.

SVs generate a validator onboarding token in the SV UI.

They can be used for 48h for secrets created by SVs and 1h for secrets created through the DevNet self-onboarding endpoint. They are one-time use only.

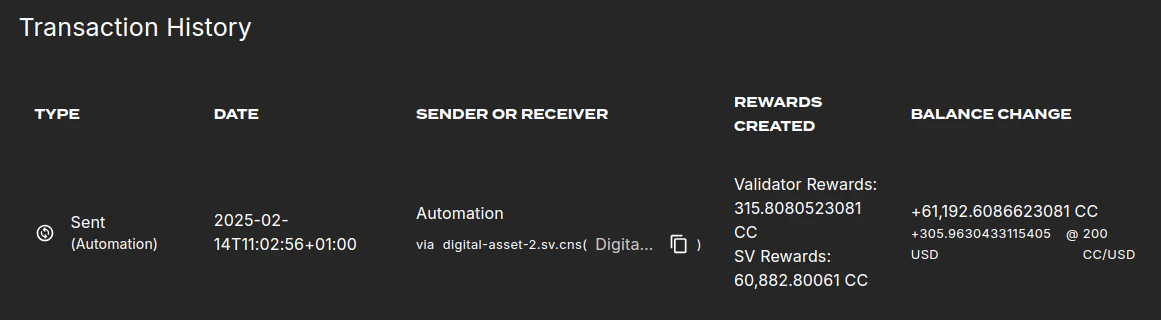

You can check your validator’s liveness rewards by checking the transaction history and look for transaction that mints validator rewards.

Since Splice 0.5.x, there are two options: (1) using the traffic cost estimate returned from preparing a transaction or (2) checking the participant logs for the actual traffic used. Option 1: call the /v2/interactive-submission/prepare Ledger API endpoint and check the costEstimation field in the response. It contains an estimate for both the traffic used for submission and the traffic used for confirmation. It is an estimate as the topology state can change between preparing and submitting the transaction. Option 2: check the participant logs for the actual traffic used for a specific transaction. To do so, follow these steps:

1. Ensure you have DEBUG logs enabled in your participant configuration.
2. Determine the trace-id of your command submission in your participant logs.
3. Search for the DEBUG log lines containing EventCost and that trace-id. There are typically two such log lines, due to how the Canton protocol works. The first one is the cost of the submission of the confirmation request, and the second one is the cost for the submission of the confirmation response for the tx validation done by the participant node.

For example, the following log line (pretty-printed by lnav) shows a command submission with trace-id 1e2d6bf54d150e230fd0c7f348707bf6 that stems from tapping some Amulet.

2025-07-10T14:39:43.155Z [⋮] INFO - c.d.c.p.a.s.c.CommandSubmissionServiceImpl:participant=aliceParticipant (1e2d6bf54d150e230fd0c7f348707bf6---) - Phase 1 started: Submitting commands for interpretation: Commands(
  commandId = org.lfdecentralizedtrust.splice.wallet.tap_92d9ffae4bd90068a15dad747559ed641572f057e3beb03f2a9b024f388bdc20,
  submissionId = 0a3e62aa-c4e7-44ba-ad8a-fdbd0e55b9e9,
  userId = alice_validator_user-b7e18d55,
  actAs = alice-validatorb7e18d55-1::12204bfd2aa7...,
  readAs = alice__wallet__user-b7e18d55__tc0::12204bfd2aa7...,
  submittedAt = 2025-07-10T14:39:43.154021Z,
  ledgerEffectiveTime = 1970-01-01T01:11:10Z,
  deduplicationPeriod = (duration=PT24H),
  synchronizerId = global-domain::12203755b6a7...,
  ...
).
```text

Searching for log lines matching the pattern `aliceParticipant.*1e2d6bf54d150e230fd0c7f348707bf6.*EventCost` will yield the following two log lines:

``` text
2025-07-10T14:39:43.202Z [⋮] DEBUG - c.d.c.s.t.TrafficStateController:participant=aliceParticipant/synchronizerId=global-domain::12203755b6a7 (1e2d6bf54d150e230fd0c7f348707bf6---) - Computed following cost for submission request using topology at 1970-01-01T01:11:10.000177Z: EventCostDetails(
  cost multiplier = 4,
  group to members size = MediatorGroupRecipient(group = 0) -> 1,
  envelopes cost details = Seq(
    EnvelopeCostDetails(write cost = 1541, read cost = 0, final cost = 1541, recipients = MediatorGroupRecipient(group = 0)),
    EnvelopeCostDetails(
      write cost = 137,
      read cost = 0,
      final cost = 137,
      recipients = Seq(MemberRecipient(PAR::aliceValidator::12204bfd2aa7...), MediatorGroupRecipient(group = 0), MemberRecipient(PAR::sv1::1220c1e24991...))
    ),
    EnvelopeCostDetails(write cost = 1904, read cost = 0, final cost = 1904, recipients = MemberRecipient(PAR::aliceValidator::12204bfd2aa7...)),
    EnvelopeCostDetails(write cost = 2509, read cost = 2, final cost = 2511, recipients = Seq(MemberRecipient(PAR::aliceValidator::12204bfd2aa7...), MemberRecipient(PAR::sv1::1220c1e24991...)))
  ),
  event cost = 6093
)
2025-07-10T14:39:43.414Z [⋮] DEBUG - c.d.c.s.t.TrafficStateController:participant=aliceParticipant/synchronizerId=global-domain::12203755b6a7 (1e2d6bf54d150e230fd0c7f348707bf6---) - Computed following cost for submission request using topology at 1970-01-01T01:11:10.000179Z: EventCostDetails(
  cost multiplier = 4,
  group to members size = MediatorGroupRecipient(group = 0) -> 1,
  envelopes cost details = EnvelopeCostDetails(write cost = 651, read cost = 0, final cost = 651, recipients = MediatorGroupRecipient(group = 0)),
  event cost = 651
)
```text

So the submission of the confirmation request cost 6093 bytes of traffic, and the submission of the confirmation response cost 651 bytes of traffic.

The read cost accounts for the cost of delivering the envelopes to all the recipients. It is computed as `readCost = writeCost * #recipients * costMultiplier / 10_000` ([code](https://github.com/digital-asset/canton/blob/1f7d0513843ae791f870ac2caeb4402f73109f86/community/base/src/main/scala/com/digitalasset/canton/sequencing/traffic/EventCostCalculator.scala#L118-L123)).

See /v0/validator-user.

There is a server limit which is by default 200. The configuration file can be updated as shown below where it increases the http-list-max-elements-limit to have a value of 1,000.

canton {
  participants {
    participant1 {
      http-ledger-api {
        address = 0.0.0.0
        port = 10010
        port-file = "./json.port"
        path-prefix = "my-prefix"
        websocket-config {
            http-list-max-elements-limit = 1000,
            http-list-wait-time = 2s,
        }
        daml-definitions-service-enabled = true
      }
    }
  }
}
```text

As per the information in Adding ad-hoc configuration, add an environment variable `ADDITIONAL_CONFIG_JSON_LIMIT=canton.participants.participant.http-ledger-api.websocket-config { http-list-max-elements-limit = 1000, http-list-wait-time = 2s }` to your Canton participant docker process.

Then you can add an extra limit on query `(?limit=xyz)` to the request but the result will never exceed server limit.

One alternative is the use the [websockets APIs](https://docs.digitalasset.com/build/3.4/reference/json-api/asyncapi.html) which don't have a hard limit.

Another alternative is to use the [PQS](https://docs.digitalasset.com/build/3.4/sdlc-howtos/applications/develop/pqs/index.html) which can simplify debugging via [Daml Shell](https://docs.digitalasset.com/build/3.4/sdlc-howtos/applications/develop/debug/daml-shell/index.html#contract-summaries).

An example where this can occur is a transaction with one root for the marker creation and one root for the actual user command. This error message is indicative of trying a transaction with multiple roots: Only single root transactions can currently be externally signed. The recommended approach is to wrap the two calls in a little helper contract. Here is an example.

There are several alternatives.

• Using the Canton API, the call listPartyToKeyMappingRequest without a filter and then reverse the mapping, storing this locally (e.g., in a database) for fast access.
• Make the mapping deterministic. Parties have format name::key_fingerprint where the fingerprint is computed from the public key. So if you always choose a deterministic name (e.g. “ledger”, or another fingerprint), then you don’t need to read the mapping at all because you can compute the fingerprint. Special consideration is needed here if you start using different keys for the “namespace root”, which determines the fingerprint, the signing key, and/or a delegated “intermediary namespace key”.
• You can also filter by signed key through the filter_signed_key field in the base_query . If you use the fingerprint of the party, it should give you a decent filter. This can be used by any of the List***Request APIs, like ListPartyToKeyMapping.

The Canton Network capabilities are always being enhanced so you need to use the latest API version specification. The steps for the JSON API or gRPC API are similar.

• For the JSON API’s OpenAPI or AsyncAPI specifications, follow these steps:
  • Find the network’s SDK version from the Splice docs. For example, DevNet’s version information is here. For TestNet, substitute test in the URL.
  • Record the major and minor semver digits for the Canton version. For example, if the snapshot is 3.3.0-snapshot.20250827.16063.0.vdc9a8874 then the important version information is 3.3.
  • Go to the open source Canton Git repo.
  • Pick the appropriate release line by selecting the drop down that says main to expose the different branches that are available. Then select the release line that has the same version found above. In this example, the release line to select is release-line-3.3.
  • This is the most up to date code for that release line. So follow the path /canton/tree/main/community/ledger/ledger-json-api/src/test/resources/json-api-docs to the openapi.yaml and asyncapi.yaml files.
• Another source for the JSON API’s specifications is to retrieve them from a running Canton participant node. A description of this is in the Verification - download OpenAPI section. The specifications are available as:
  • For OpenAPI: http://<host>:<port>/docs/openapi
  • For AsyncAPI: http://<host>:<port>/docs/asyncapi
• For the GRPC protobuf definitions, follow the same steps as above but change the last step to be:
  • Follow the path /community/ledger-api/src/main/protobuf/com/daml/ledger/api/v2 to the proto files.

There are examples avalable. See here. This file sends a request via websocket as part of a scenario that is described in the README.md.

A v2/updates is being added in 3.3 and will be available soon. In the interim, you can use v2/updates/flat which has the same behavior as UpdateService.GetUpdates.

• Copy the token standard dars from the repo and check them into your own repo.
• Make sure to only depend on splice-token-api-* packages for your main files. These are guaranteed to be stable.
• Put your Daml script tests for your workflow into separate *-test daml projects as done in splice. See the daml.yaml for details.

There’s a wallet SDK here which is under rapid development. No OSS UI yet though.
