Overview

In this guide, you’ll deploy the Quickstart app from LocalNet to DevNet. You’ll deploy the original DAR, deploy to the backend, frontend and test the workflow. You should have the Quickstart application installed and understand the quickstart-project-structure-guide.

DevNet validator prerequisite

You must have successfully submitted a validator request to successfully complete this guide. Submit your request at: https://canton.foundation/apply-to-set-up-a-validator-node/ Visit the global synchronizer docs to learn more about the validator onboarding process and how to deploy a validator with Docker Compose. You can find up-to-date Canton Foundation DevNet Super Validator Node Information at: https://canton.foundation/sv-network-status/

Architectural overview

The Quickstart DevNet deployment splits across two components:

splice-node: Provides the validator infrastructure (participant, validator, wallet-ui, ans-ui)
cn-quickstart: Provides the application layer (keycloak, pqs, backend-service, frontend)

   ┌────────────────────────────────────────────────────────────────┐
   │                         splice-node                            │
   │  ┌─────────────┐  ┌─────────────┐  ┌──────────┐  ┌──────────┐  │
   │  │ Participant │  │  Validator  │  │ Wallet-UI│  │  ANS-UI  │  │
   │  │   :8080     │  │   :5012     │  │  :3000   │  │  :3000   │  │
   │  └─────────────┘  └─────────────┘  └──────────┘  └──────────┘  │
   └────────────────────────────────────────────────────────────────┘
            │                  │
            │ Ledger API       │ Registry API
            ▼                  ▼
   ┌────────────────────────────────────────────────────────────────┐
   │                         cn-quickstart                          │
   │  ┌──────────┐  ┌──────────┐  ┌─────────────┐  ┌─────────────┐  │
   │  │ Keycloak │  │   PQS    │  │  Backend    │  │  Frontend   │  │
   │  │  :8082   │  │ (scribe) │  │   :8089     │  │   :5173     │  │
   │  └──────────┘  └──────────┘  └─────────────┘  └─────────────┘  │
   └────────────────────────────────────────────────────────────────┘

splice-node ports are internal container ports and routed via nginx by hostname. cn-quickstart ports are directly exposed. The frontend communicates with the backend via HTTP REST calls to /api/* endpoints. The Vite development server proxies these requests to the backend, which translates them into Ledger API calls. For a detailed explanation of this fully mediated architecture, see quickstart-project-structure-guide.

Quickstart configuration for DevNet

Quickstart environment variables are set for LocalNet usage by default, but ledger connections differ between LocalNet and DevNet configurations. For example:

Variable	LocalNet Value	DevNet Value
`LEDGER_HOST`	`localhost`	`grpc-ledger-api.localhost`
`LEDGER_PORT`	`5001`	`80` or `8080`

Configure Host entries

nginx.conf uses virtual hosting to route requests to backend services. As a result, nginx inspects your Host HTTP header to determine backend routing. Add explicit host entires for reliable routing. Add these entries to /etc/hosts:

   sudo vim /etc/hosts

0.0.1 json-ledger-api.localhost
0.0.1 grpc-ledger-api.localhost
0.0.1 validator.localhost
0.0.1 app-provider.localhost
0.0.1 participant.localhost
0.0.1 wallet.localhost
0.0.1 ans.localhost
0.0.1 keycloak.localhost
0.0.1 host.docker.internal

You only need to complete this step one time.

Host Entry	URL	Purpose
`json-ledger-api.localhost`	`http://json-ledger-api.localhost/`	JSON Ledger API (REST commands, DAR uploads)
`grpc-ledger-api.localhost`	`http://grpc-ledger-api.localhost/`	gRPC Ledger API (backend’s `LEDGER_HOST`)
`validator.localhost`	`http://validator.localhost/`	Validator application API
`wallet.localhost`	`http://wallet.localhost/`	Canton Wallet web interface
`app-provider.localhost`	`http://app-provider.localhost:5173/`	Quickstart frontend web interface
`participant.localhost`	`http://participant.localhost/`	Participant admin/metrics
`ans.localhost`	`http://ans.localhost/`	Canton Name Service (ANS) web interface
`keycloak.localhost`	`http://keycloak.localhost:8082/`	OAuth2/OIDC provider

DevNet Host Entries The nginx proxy routes based on hostname. Default port is 80. MacOS users may need to change the validator port from 80 to 8080 to avoid vmnetd errors. See vmnetd-error in the Troubleshooting section.

Clone the Splice-Node Validator repository

In DevNet, your Splice node validator runs locally and connects to the DevNet synchronizer. Clone the correct version of the Splice-node repository and navigate to the validator Docker Compose directory. As of the writing of this document, the most up to date version is 0.5.8.

Note

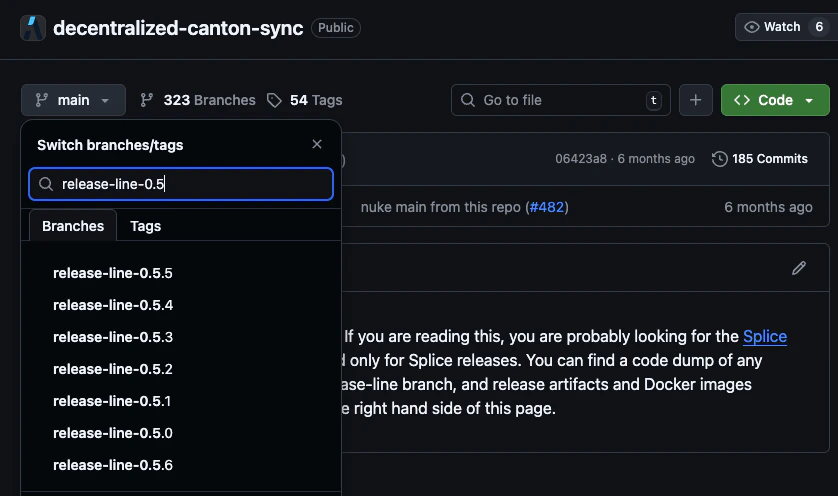

You can check for the most up to date release for yourself by navigating to https://github.com/digital-asset/decentralized-canton-sync. Click on “Main” then search through the release-line options.

The following link downloads the 0.5.8 splice-node release. Move the downloaded file to the location of your choice. (To download a different release, simply edit the version numbers in the URL). Click the link to download the splice node release: https://github.com/digital-asset/decentralized-canton-sync/releases/download/v0.5.8/0.5.8_splice-node.tar.gz Move the splice-node tarball to your desired location and then unzip it.

   tar xzvf 0.5.8_splice-node.tar.gz

The new splice-node repo and cn-quickstart should be siblings to one another. . ├── Canton_Network_App_Dev │ ├── cn-quickstart └── └── splice-node

Note

You only need to complete this step one time for any given splice-node release.

Navigate to the validator’s Docker Compose directory

cd splice-node/docker-compose/validator

Connect to a Canton Network Validator Node

Navigate to your OS’s VPN settings, then connect to your sponsoring validator node. VPN access is required for DevNet. Contact your sponsoring SV for VPN credentials.

Mac OS

Settings > VPN

Enable your Canton Network VPN

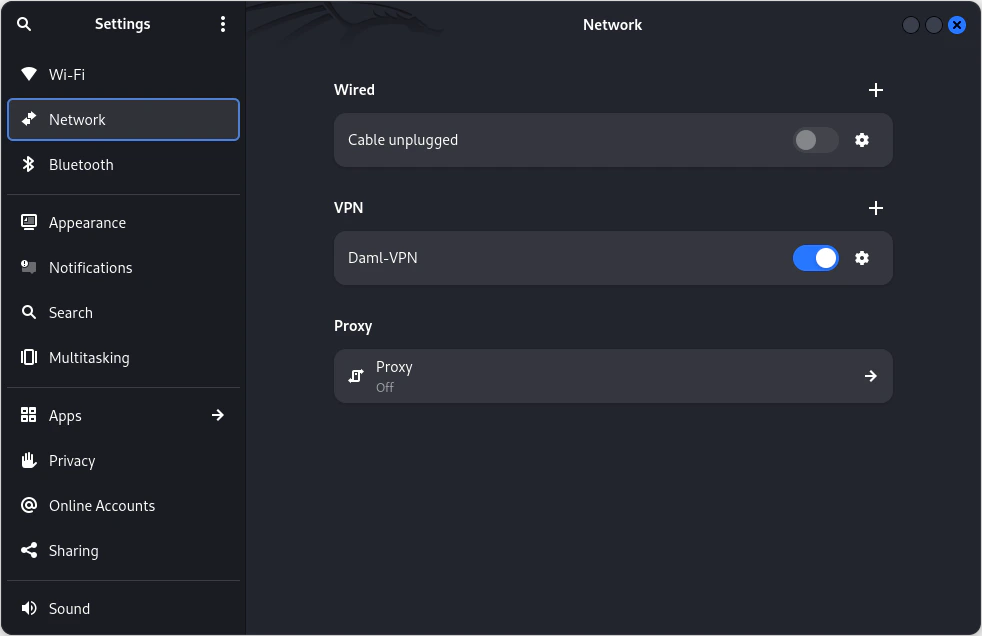

Linux

Network > VPN

Clean Docker

Clear Docker If this is not your first time connecting to DevNet so that stale containers do not interfere.

   docker compose down -v

Get network information

Retrieve DevNet migration ID and Splice version

In terminal, from the /validator directory run:

   INFO_URL="https://docs.dev.global.canton.network.sync.global/info"
   SPLICE_VERSION=$(curl -s "$INFO_URL" | jq -r '.synchronizer?.active?.version')
   MIGRATION_ID=$(curl -s "$INFO_URL" | jq -r '.synchronizer?.active?.migration_id')

   echo "Splice Version: $SPLICE_VERSION"
   echo "Migration ID: $MIGRATION_ID"

Verify that the Splice version matches the splice-node version that you recently downloaded and unzipped. Minor Splice versions change on a regular basis. You may elect to hard code SPLICE_VERSION rather than saving the most recent version. e.g. SPLICE_VERSION=0.5.8

Get the onboarding secret

You may use the following Super Validator URL if you are connected to the Canton Network Global Synchronizer. If not, your sponsoring SV will provide the appropriate URL. In this case, you must replace the provided SPONSOR_SV_URL with your provided URL.

   # GSF Sponsor SV URL for DevNet
   SPONSOR_SV_URL="https://sv.sv-1.dev.global.canton.network.sync.global"

   # Request and store the onboarding secret
   ONBOARDING_SECRET=$(curl -s -X POST "$SPONSOR_SV_URL/api/sv/v0/devnet/onboard/validator/prepare")
   echo $ONBOARDING_SECRET

Tip

The onboarding secret is only good for 1 hour. If containers ever show unhealthy, try requesting a new onboarding secret as your first step in troubleshooting.

Party Hint

Set a Party Hint. The party hint must match the expected hint that is established when running make setup from cn-quickstart/quickstart. If you don’t remember your party hint, you can open a terminal and navigate to cn-quickstart/quickstart/, then run make setup. The default party hint is quickstart-USERNAME-1 Return to the terminal in the validator directory. Set PARTY_HINT.

   PARTY_HINT="quickstart-USERNAME-1"

This value must match the expected party hint.

Authentication

Note

If you would like to connect to DevNet without authentication, you may skip this section and initiate the start.sh script without the -a flag.

Update authentication variables in splice-node/docker-compose/validator/.env using Quickstart’s pre-configured Keycloak values. The following Authentication values can be found in cn-quickstart’s keycloak env, realm and user JSON files. Files include quickstart/quickstart/docker/modules/keycloak/compose.env, AppProvider-realm.json, and AppProvider-users-0.json. splice-node/docker-compose/validator/.env

   # Authentication

   # OIDC Provider URLs
   AUTH_URL="http://keycloak.localhost:8082"
   AUTH_JWKS_URL="http://host.docker.internal:8082/realms/AppProvider/protocol/openid-connect/certs"
   AUTH_WELLKNOWN_URL="http://host.docker.internal:8082/realms/AppProvider/.well-known/openid-configuration"

   # Audiences
   LEDGER_API_AUTH_AUDIENCE="https://canton.network.global"
   LEDGER_API_AUTH_SCOPE=""       # Optional, leave empty
   VALIDATOR_AUTH_AUDIENCE="https://canton.network.global"

   # Validator client credentials
   VALIDATOR_AUTH_CLIENT_ID="app-provider-validator"
   VALIDATOR_AUTH_CLIENT_SECRET="AL8648b9SfdTFImq7FV56Vd0KHifHBuC"

   # Admin users
   LEDGER_API_ADMIN_USER="service-account-app-provider-validator"
   WALLET_ADMIN_USER="app-provider"

   # UI Clients
   WALLET_UI_CLIENT_ID="app-provider-wallet"
   ANS_UI_CLIENT_ID="app-provider-ans"

Note

These are development secrets and should be changed for production.

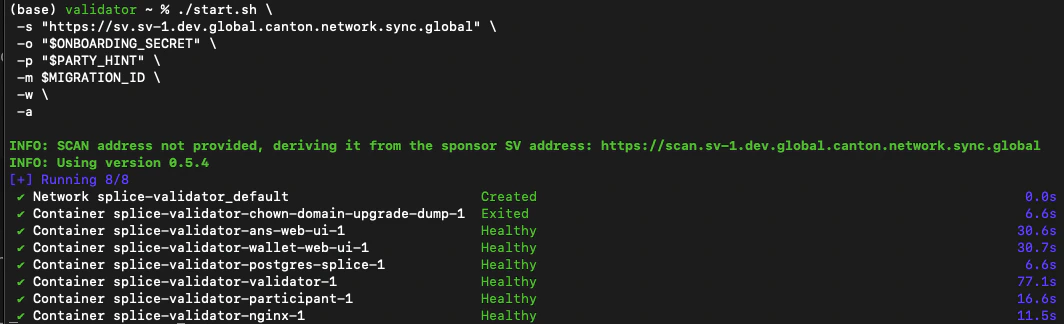

Start the validator with the start.sh script.

Verify that you are in the validator directory, then run this command to connect to DevNet:

   ./start.sh \
    -s "https://sv.sv-1.dev.global.canton.network.sync.global" \
    -o "$ONBOARDING_SECRET" \
    -p "$PARTY_HINT" \
    -m $MIGRATION_ID \
    -w \
    -a

Flag descriptions

Flag	Description
`-s`	Sponsor SV URL
`-o`	Onboarding secret
`-p`	Your unique party hint
`-m`	Migration ID (a non-negative integer)
`-w`	Wait for validator to be fully operational
`-a`	Enable authentication

Note

You can omit the -a flag to skip authentication setup. This may make initial testing easier, but you should enable authentication for production use.

While DevNet is starting, move on to the next step. (You’ll need to complete the next step before DevNet is able to connect).

Spin up the Quickstart DevNet

In a second terminal, navigate to the Quickstart DevNet Docker Compose directory.

   cd cn-quickstart/quickstart/docker/modules/devnet

   docker compose --env-file compose.env --profile devnet up -d postgres-keycloak keycloak nginx-keycloak postgres-pqs pqs-app-provider backend-service

   devnet ~ % docker compose --env-file compose.env --profile devnet up -d postgres-keycloak keycloak nginx-keycloak postgres-pqs pqs-app-provider backend-service
   [+] Running 7/7
    ✔ Container postgres-pqs          Healthy                  27.5s
    ✔ Container postgres-keycloak     Healthy                  6.2s
    ✔ Container keycloak              Healthy                  26.7s
    ✔ Container nginx-keycloak        Started                  26.7s
    ✔ Container splice-onboarding     Healthy                  41.3s
    ✔ Container pqs-app-provider      Started                  27.3s
    ✔ Container backend-service       Started                  41.4s

DevNet connects shortly after spinning up the docker containers. A successful connection shows healthy containers.

Note

See the Troubleshooting section if you experience a vmnetd error.

Build and upload the DAR

Return to the /quickstart directory.

   cd ../../../

Then build the Daml code.

   make build-daml

Verify that the DAR was created.

   ls -la daml/licensing/.daml/dist/quickstart-licensing-0.0.1.dar

If successful, this command returns the DAR file.

   -rw-r--r--  1 username  staff  685582 Nov 25 09:00 daml/licensing/.daml/dist/quickstart-licensing-0.0.1.dar

Upload the DAR to your DevNet validator

Get a token from Keycloak to make an authenticated request:

   TOKEN=$(curl -s -X POST "http://keycloak.localhost:8082/realms/AppProvider/protocol/openid-connect/token" \
     -d "grant_type=client_credentials" \
     -d "client_id=app-provider-validator" \
     -d "client_secret=AL8648b9SfdTFImq7FV56Vd0KHifHBuC" | jq -r .access_token)

(Note that the client_secret matches the app-provider-validator’s secret in Keycloak’s AppProvider-realm.json). From the /quickstart directory, upload the DAR to your DevNet validator (MacOS users replace ${LEDGER_PORT} with 8080):

MacOS

   curl -X POST "http://json-ledger-api.localhost:8080/v2/dars?vetAllPackages=true" \
     -H "Authorization: Bearer $TOKEN" \
     -H 'Content-Type: application/octet-stream' \
     --data-binary @daml/licensing/.daml/dist/quickstart-licensing-0.0.1.dar

Linux

   curl -X POST "http://json-ledger-api.localhost:${LEDGER_PORT}/v2/dars?vetAllPackages=true" \
     -H "Authorization: Bearer $TOKEN" \
     -H 'Content-Type: application/octet-stream' \
     --data-binary @daml/licensing/.daml/dist/quickstart-licensing-0.0.1.dar

An empty response of {} indicates a successful upload.

Build the Backend

Build the backend from the /quickstart directory:

   make build-backend

Configure Quickstart frontend for DevNet

The frontend communicates with the backend via HTTP REST calls to /api/* endpoints. The Vite development server proxies these requests to the backend, which translates them into Ledger API calls to the DevNet participant. Review vite.config.ts for details. Build the frontend from the /quickstart directory:

   make build-frontend

Start the Vite development server.

   make vite-dev

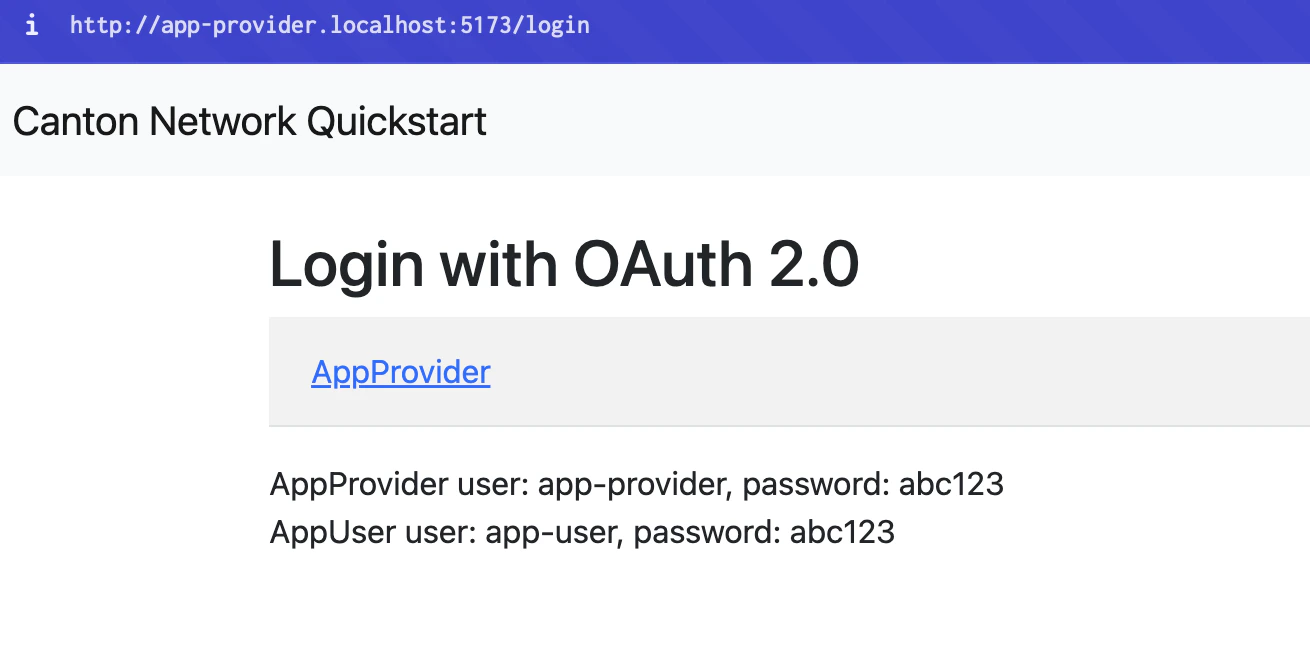

The frontend runs on port 5173. Open your browser to: http://app-provider.localhost:5173 It’s extremely important to prepend localhost with app-provider in order to successfully log in through Keycloak. Select AppProvider

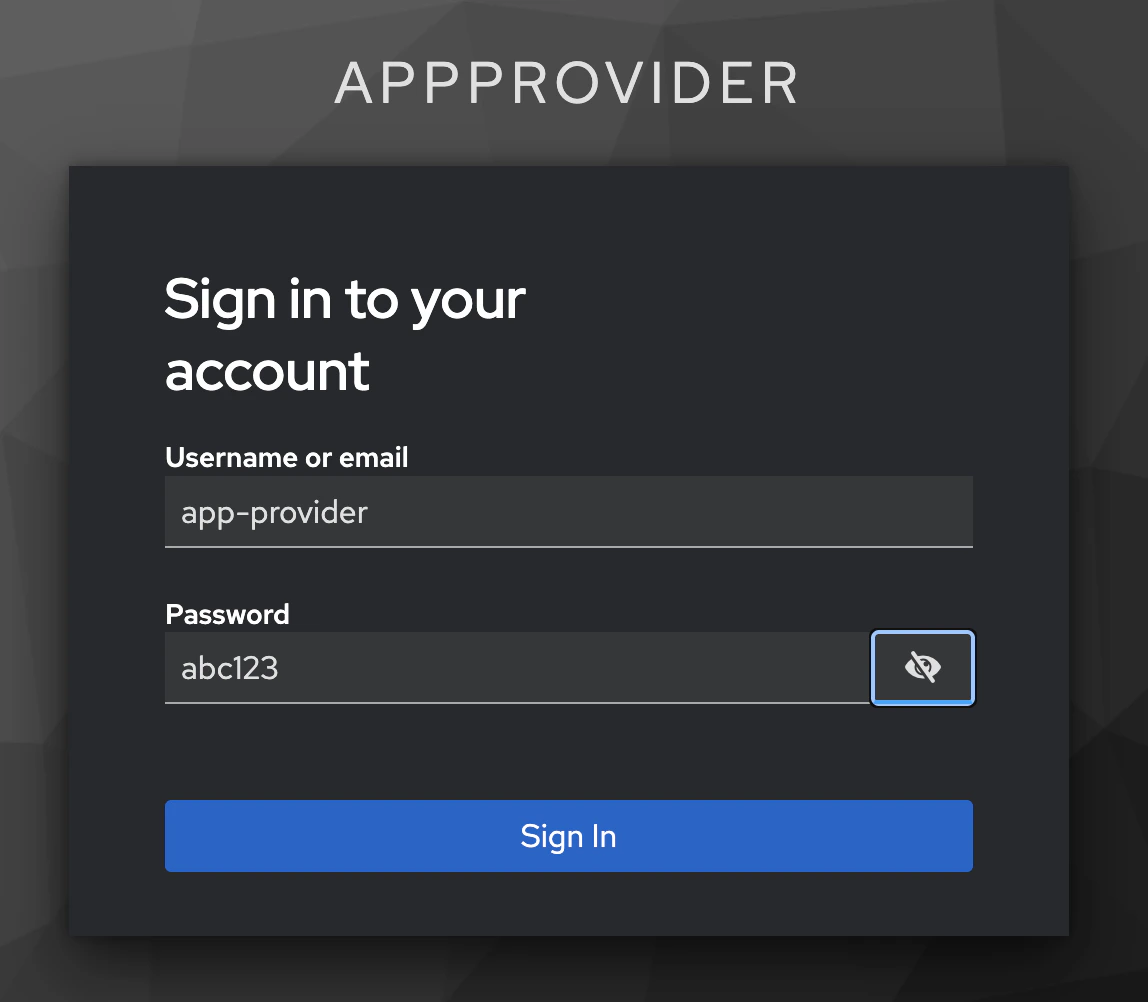

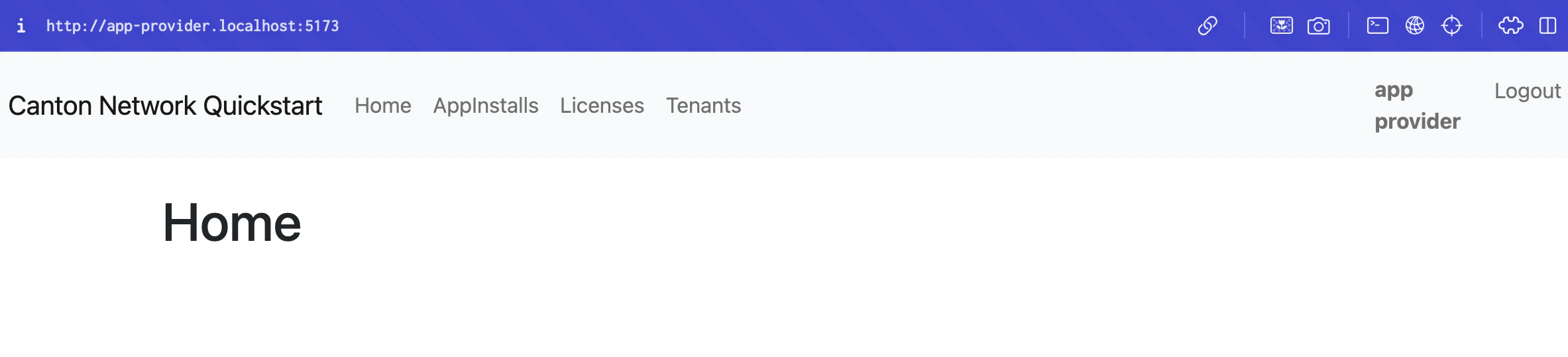

You sign in to the App Provider’s Quickstart homepage. Congratulations! You’ve launched Quickstart to DevNet!

Note

Quickstart won’t immediately operate as it does on LocalNet. You’ll need to refactor to resolve connectivity issues. Perhaps begin with make create-app-install-request.

Appendix

Recipes

Start and stop scripts

In the future, use the provided start.sh and stop.sh scripts to quickly start and stop Quickstart DevNet Docker containers. Use ./start.sh to run a live log stream in terminal. (exit with ctrl+c) Opt for ./start.sh -d to spin up the containers without a log stream. Stop all of the Quickstart DevNet Docker containers with ./stop.sh. You may also remove the volumes with ./stop.sh -v.

Health check

You can check that Docker services are connected by checking docker ps. To check a specific service use grep. e.g. docker ps | grep backend-service.

   docker ps --format "table {{.Names}}\t{{.Status}}"

Via, CURL, get a token and then ping the service. Get an auth token:

   TOKEN=$(curl -s -X POST "http://keycloak.localhost:8082/realms/AppProvider/protocol/openid-connect/token" \
     -d "grant_type=client_credentials" \
     -d "client_id=app-provider-backend" \
     -d "client_secret=05dmL9DAUmDnIlfoZ5EQ7pKskWmhBlNz" | jq -r .access_token)

Call the service of your choice:

   Backend health check: curl -H "Authorization: Bearer $TOKEN" http://localhost:8089/actuator/health

Super validator connectivity check

You may make a connectivity check to the DevNet super validator at anytime:

   curl -s "https://scan.sv-1.dev.global.canton.network.sync.global/api/scan/v0/splice-instance-names"

View tables

You can explore the container schema by querying the list of tables.

   docker exec -it splice-validator-postgres-splice-1 psql -U cnadmin -d validator -c "
     SELECT schemaname, tablename
     FROM pg_tables
     WHERE schemaname = 'validator'
     ORDER BY tablename;"

Confirm current migration ID

   curl -s "https://docs.dev.global.canton.network.sync.global/info" | jq '.synchronizer?.active?.migration_id'

Find DSO fingerprint

   curl -s "https://scan.sv-1.dev.global.canton.network.sync.global/api/scan/v0/dso-party-id"

Docker

Read docker logs

   docker logs FAILING_VALIDATOR --tail 100

Kill running containers

   docker kill $(docker ps -q)

Stop gracefully

   docker stop $(docker ps -q)

docker ps -q lists the container IDs of running containers $() passes those IDs to the kill or stop command

Remove containers after stopping

   docker rm $(docker ps -aq)

One command

   docker stop $(docker ps -q) && docker rm $(docker ps -aq)

Troubleshooting

Resolve vmnetd errorIf you experience a `vmnetd` error response then the most

straightforward solution is to update the validator compose port from 80 to 8080.

If necessary, to resolve “vmnetd running errors”, find nginx service in splice-node/docker-compose/validator/compose.yaml. It is currently at line 163. Change port 80:80 in "${HOST_BIND_IP:-127.0.0.1}:80:80" to 8080:80. splice-node/docker-compose/validator/compose.yaml

   nginx:
      image: "nginx:${NGINX_VERSION}"
      volumes:
        - ./nginx.conf:/etc/nginx/nginx.conf
        - ./nginx:/etc/nginx/includes
      ports:
        - "${HOST_BIND_IP:-127.0.0.1}:8080:80" # Change this line from 80:80 to 8080:80
      depends_on:
        - ans-web-ui
        - wallet-web-ui
        - validator
      restart: always
      networks:
        - ${DOCKER_NETWORK:-splice_validator}
      healthcheck:
        test: ["CMD", "service", "nginx", "status"]
        interval: 30s
        timeout: 10s
        retries: 3
        start_period: 60s

Troubleshoot frontend JavaScript mapping errors

Switch BACKEND_PORT from 8080 to 8089

Open cn-quickstart/quickstart/.env in a text editor and change BACKEND_PORT=8080 to BACKEND_PORT=8089.

Update proxyReq in vite configuration

Change line 35 in vite.config.ts from proxyReq.setHeader('host', 'app-provider.localhost') to proxyReq.setHeader('host', 'app-provider.localhost:5173').

Ping app-provider.localhost

   ping -c 1 app-provider.localhost

If successful, navigate to the app at http://app-provider.localhost:5173 and login.

Check backend-service logs for errors

   docker logs backend-service --tail 30

Find the login options

   curl -s http://localhost:8089/login-links | jq

Get token for backend API access

   TOKEN=$(curl -s -X POST "http://keycloak.localhost:8082/realms/AppProvider/protocol/openid-connect/token" \
     -d "grant_type=client_credentials" \
     -d "client_id=app-provider-backend" \
     -d "client_secret=05dmL9DAUmDnIlfoZ5EQ7pKskWmhBlNz" | jq -r .access_token)

Verify token was retrieved

   echo "Token length: ${#TOKEN}"

Query data from PQS

Query app install requests

   curl -H "Authorization: Bearer $TOKEN" http://localhost:8089/app-install-requests | head -10

Query license data

   curl -H "Authorization: Bearer $TOKEN" http://localhost:5173/api/licenses

Error port is already in use

If terminal shows Error: Port 5173 is already in use identify and kill the associated node process, then run your command again.

   lsof -i :5173

   COMMAND   PID     USER       FD   TYPE  DEVICE  SIZE/OFF  NODE  NAME
   node      12345   USERNAME   34u  IPv6  DEVICE  0t0       TCP   localhost:5173 (LISTEN)

   kill -9 12345

Restart unhealthy Docker containers

If you have trouble connecting to healthy containers, restart the Docker containers and capture full logs. Stop the container

   docker compose -f splice-node/docker-compose/validator/compose.yaml down

Start fresh and capture the logs

   docker compose -f splice-node/docker-compose/validator/compose.yaml up validator 2>&1 | tee validator-startup.log

Read logs in terminal:

   docker logs splice-validator-validator-1 2>&1 | head -300

Replace splice-validator-validator-1 with the desired container.

Keycloak

Note

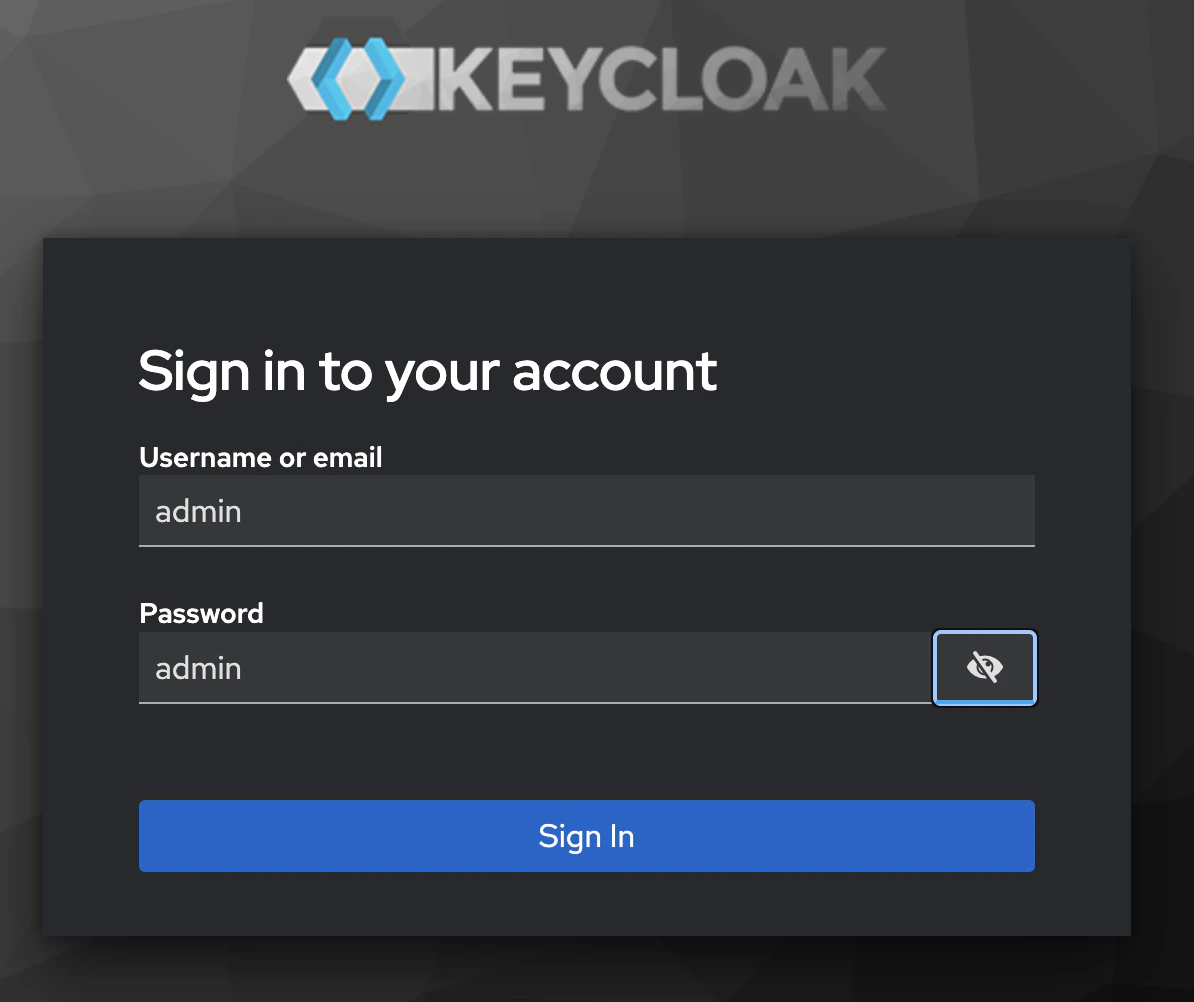

You can login to the Keycloak admin GUI at http://host.docker.internal:8082/ Use admin for the username and password.

Check Keycloak logs:

   docker logs keycloak

Check PostgreSQL:

   docker logs postgres-keycloak

Check the OIDC discovery endpoint:

   curl -s http://keycloak.localhost:8082/realms/AppProvider/.well-known/openid-configuration | jq .

Get an OAuth2 AppProvider realm token:

   curl -s -X POST http://keycloak.localhost:8082/realms/AppProvider/protocol/openid-connect/token \
    -H "Content-Type: application/x-www-form-urlencoded" \
    -d "grant_type=password" \
    -d "client_id=app-provider-unsafe" \
    -d "username=app-provider" \
    -d "password=app-provider" | jq .access_token

Get an OAuth2 AppUser realm token:

   curl -s -X POST http://keycloak.localhost:8082/realms/AppUser/protocol/openid-connect/token \
    -H "Content-Type: application/x-www-form-urlencoded" \
    -d "grant_type=password" \
    -d "client_id=app-user-unsafe" \
    -d "username=app-user" \
    -d "password=app-user" | jq .access_token

Check Keycloak’s public key location:

   curl -s http://keycloak.localhost:8082/realms/AppProvider/.well-known/openid-configuration | jq .issuer

Expected response is "http://host.docker.internal:8082/realms/AppProvider"

   docker logs keycloak 2>&1 | grep -i "ssl\|https\|require" | tail -20

The following command disables the SSL requirements for the master realm and allows you to login as admin at localhost:8082.

   docker exec -it keycloak /opt/keycloak/bin/kcadm.sh config credentials \
     --server http://localhost:8082 --realm master --user admin --password admin

   docker exec -it keycloak /opt/keycloak/bin/kcadm.sh update realms/master \
     -s sslRequired=NONE

Splice-onboarding troubleshooting

Find specific env values:

   docker exec splice-onboarding env | grep -E "PARTICIPANT|LEDGER"

Restart the splice-onboarding container:

   cd cn-quickstart/quickstart/docker/modules/devnet
   docker compose --env-file compose.env -f compose.yaml --profile devnet down -v
   docker compose --env-file compose.env -f compose.yaml --profile devnet build --no-cache splice-onboarding
   docker compose --env-file compose.env -f compose.yaml --profile devnet up -d

Watch the logs:

   docker logs -f splice-onboarding

Query splice-onboarding networks:

   docker inspect splice-onboarding --format '{{json .NetworkSettings.Networks}}' | jq

Check which network the splice-validator-nginx is on:

   docker ps --format "{{.Names}}" | grep -E "nginx|validator|participant"

Then inspect that container to see its network:

   docker inspect splice-validator-nginx-1 --format '{{json .NetworkSettings.Networks}}' 2>/dev/null | jq || \
   docker network inspect splice-validator_splice_validator --format '{{range .Containers}}{{.Name}} {{end}}'

Check if splice-onboarding is initialized:

   docker exec splice-onboarding cat /tmp/all-done && echo "SUCCESS"

Splice-onboarding connection issue

If you run splice-onboarding logs and see:

   (base) devnet ~ % docker logs -f splice-onboarding
   Start with mode --init
   Initializing DevNet onboarding...
   Waiting for external participant at grpc-ledger-api.localhost:8080...
   Waiting for participant... attempt 1/60
   Waiting for participant... attempt 2/60
   Waiting for participant... attempt 3/60
   Waiting for participant... attempt 4/60
   Waiting for participant... attempt 5/60

Then there is likely an error in LEDGER_HOST or LEDGER_PORT. Unset the variables or quit and restart terminal.

Get Started

Module 1: Understanding Canton

Module 2: Canton for Ethereum Developers

Module 3: Daml Smart Contracts

Module 4: Full-Stack Application Development

Module 5: Testing & Deployment

Module 6: Smart Contract Upgrades

Module 7: Production Best Practices

Deep Dives

Tooling

App Rewards

Troubleshooting

Reference

Documentation Index

​Overview

​DevNet validator prerequisite

​Architectural overview

​Quickstart configuration for DevNet

​Configure Host entries

​Clone the Splice-Node Validator repository

​Navigate to the validator’s Docker Compose directory

​Connect to a Canton Network Validator Node

​Mac OS

​Linux

​Clean Docker

​Get network information

​Retrieve DevNet migration ID and Splice version

​Get the onboarding secret

​Party Hint

​Authentication

​Start the validator with the start.sh script.

​Flag descriptions

​Spin up the Quickstart DevNet

​Build and upload the DAR

​Upload the DAR to your DevNet validator

​MacOS

​Linux

​Build the Backend

​Configure Quickstart frontend for DevNet

​Appendix

​Recipes

​Start and stop scripts

​Health check

​Super validator connectivity check

​View tables

​Confirm current migration ID

​Find DSO fingerprint

​Docker

​Read docker logs

​Kill running containers

​Stop gracefully

​Remove containers after stopping

​One command

​Troubleshooting

​Resolve vmnetd errorIf you experience a vmnetd error response then the most

​Troubleshoot frontend JavaScript mapping errors

Switch BACKEND_PORT from 8080 to 8089

Update proxyReq in vite configuration

Ping app-provider.localhost

Check backend-service logs for errors

Find the login options

Get token for backend API access

Verify token was retrieved

Query data from PQS

​Error port is already in use

​Restart unhealthy Docker containers

​Keycloak

​Unable to login to Keycloak as admin

​Splice-onboarding troubleshooting

​Splice-onboarding connection issue

Overview

DevNet validator prerequisite

Architectural overview

Quickstart configuration for DevNet

Configure Host entries

Clone the Splice-Node Validator repository

Navigate to the validator’s Docker Compose directory

Connect to a Canton Network Validator Node

Mac OS

Linux

Clean Docker

Get network information

Retrieve DevNet migration ID and Splice version

Get the onboarding secret

Party Hint

Authentication

Start the validator with the start.sh script.

Flag descriptions

Spin up the Quickstart DevNet

Build and upload the DAR

Upload the DAR to your DevNet validator

MacOS

Linux

Build the Backend

Configure Quickstart frontend for DevNet

Appendix

Recipes

Start and stop scripts

Health check

Super validator connectivity check

View tables

Confirm current migration ID

Find DSO fingerprint

Docker

Read docker logs

Kill running containers

Stop gracefully

Remove containers after stopping

One command

Troubleshooting

Resolve vmnetd errorIf you experience a `vmnetd` error response then the most

Troubleshoot frontend JavaScript mapping errors

Error port is already in use

Restart unhealthy Docker containers

Keycloak

Unable to login to Keycloak as admin

Splice-onboarding troubleshooting

Splice-onboarding connection issue
